Leaking Spigot - How to Remedy
Like whatever other faucet (also known as a tap), a spigot has an internal washer which seals and cuts off menstruum when the spigot is turned off. Eventually after thousands of on/off cycles, this washer wears abroad, and the consequence is a dripping spigot.
Fortunately only a couple of tools are needed for this repair and a washer only costs tens of cents. The most tricky and problematic part of the repair is likely to be unscrewing the summit of the device.

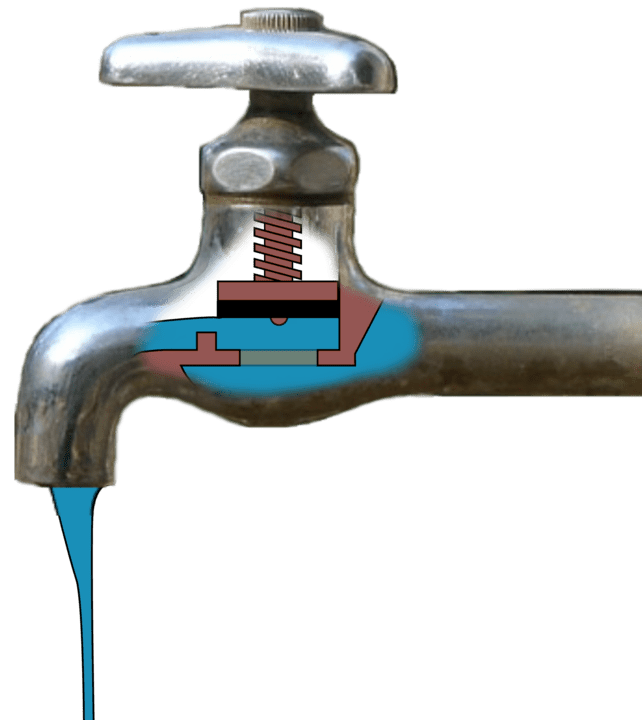

Tap mechanism. The black washer part is screwed downwards onto a seat, shutting off flow.
Chabacano, CC BY SA 2.0 via Wikimedia Commons
Outside tap or bibcock.
© Eugene Brennan
What is a Water Spigot?
Depending on where you live in the world, this valve is known by unlike names. In the USA, it'southward normally referred to equally a spigot, bibcock, bib, hose bib, outdoor or garden faucet or silcock. In United kingdom and Republic of ireland, we call it an outside or garden tap.
- Vise grip locking pliers for holding torso of spigot
- Wrench (spanner) or alternatively a second vise grips, water pump pliers or pipe wrench (Stilsons) for removing upper body of spigot
Step ane. Identify Where the Water is Coming from on the Spigot
Spigots leak either from the spout itself or from effectually the spindle (shaft) of the spigot where it enters the packing nut (gland nut). If the latter is the case, it will dribble from this bespeak when turned on.
Step 2. Plough Off the H2o
Locate the valve for shutting off h2o to the spigot and shut it. These are ordinarily turned off by turning clockwise. There are three mutual types:
- Gate valve. The handle must be continuously turned until information technology goes no farther.
- Ball valve (quadrant valve). Turn the lever 90 degrees. Commonly when the valve is off, the lever is perpendicular to the pipe.
- Miniature inline brawl valve. These are often used to shut off catamenia to individual appliances. Plow the screw 90 degrees clockwise with a screwdriver so it's perpendicular to the pipe.
Turn on the spigot to release any water.

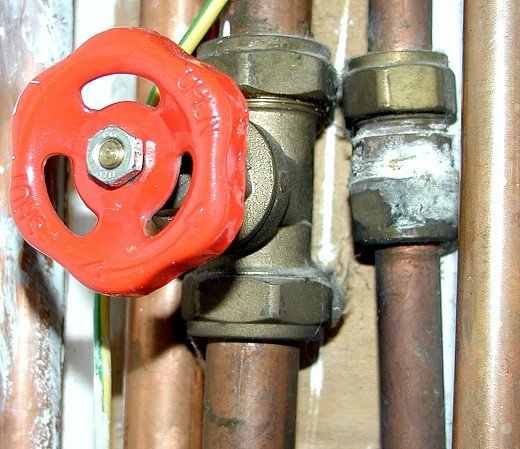

Gate valve - Turn fully clockwise for off
© Eugene Brennan
Quadrant or brawl valve. This is off when the handle is perpendicular or xc degrees to the piping
© Eugene Brennan
Miniature inline valve, which is opened/closed with a screwdriver. Turn so the slot is 90 degrees to the piping.
Step two - Remove the Head of the Spigot
Fixing the spigot washer
Open the spigot a couple of turns. Use the vise grips to hold the valve body of the spigot. A curved jaw vise grips will give a amend grip than a plain/straight jawed type. Alternatively concur the body of the spigot with a water pump pliers. If you don't hold the spigot body deeply and accept to employ a large strength to undo the upper section or head, its quite possible to rip out the fixing screws and pull the spigot off the wall or timber its mounted on.
Ringlet to Go on
Read More From Dengarden
You tin can use either a wrench (spanner), Stilsons (pipe wrench) or water pump pliers to remove the head of the tap. The head is removed counterclockwise.

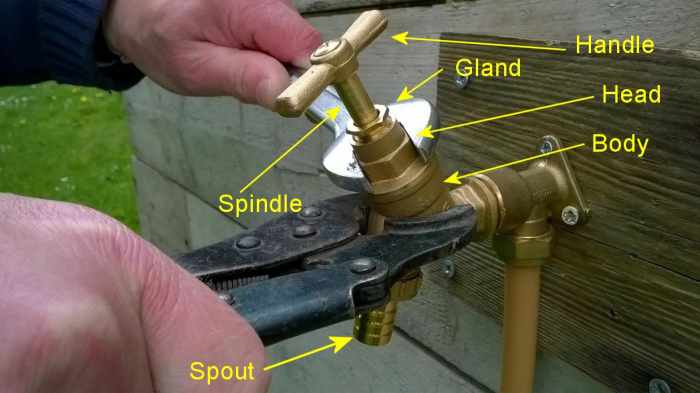

Remove the head. Ideally yous should hold the trunk likewise to restrain it,
© Eugene Brennan
From left to correct - Wrench (spanner), Stilsons (pipe wrench), h2o pump pliers. Either of these can be used to remove the head of the tap
© Eugene Brennan
If the caput is stuck fast, and hard to unscrew, try heating the lower section of the spigot with boiling h2o. This unremarkably works because it expands the contumely body sufficiently to reduce its property grip. The of import thing is to only heat the lower trunk of the spigot. If you pour boiling water over both parts, the two sections volition aggrandize, defeating the purpose.
You lot can besides try borer the wrench with a light hammer. This tin can exist difficult to do (a third paw would be useful for property the vise grips, but your belly might suffice!). A 2nd straight jaw vise grips comes in useful if you demand to practise this.
If you can't remove the head, try using hot water. This expands the lower metallic body of the spigot and loosens its grip. Pour h2o on the lower half simply, not the head
© Eugene Brennan

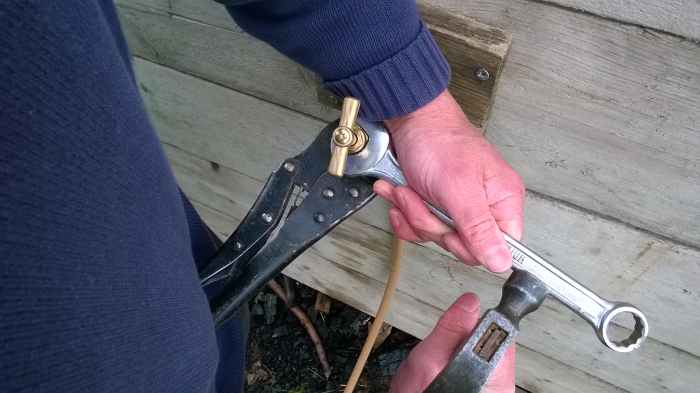

Tap gently if the caput withal remains difficult to remove
© Eugene Brennan

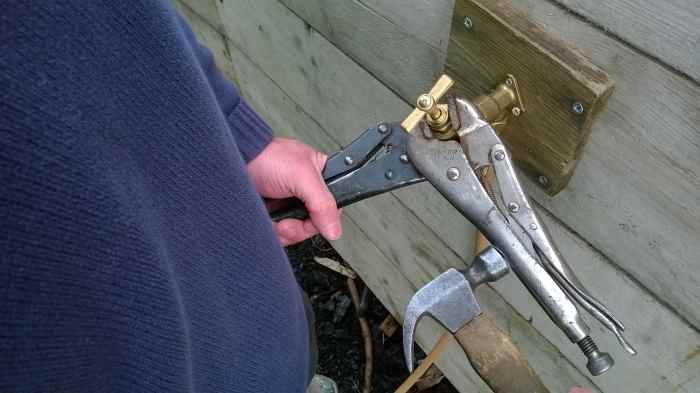

A second vise grips comes in useful
© Eugene Brennan
Head removed from spigot.
© Eugene Brennan
The washer seals against the rim of the pigsty within the spigot (called the valve seat)
© Eugene Brennan
Pace 3. Remove the Old Washer
This is often held on with a "mushroom" type projection or lug extending from the "jumper" or flange section. Alternatively a nut is used for retaining the washer.

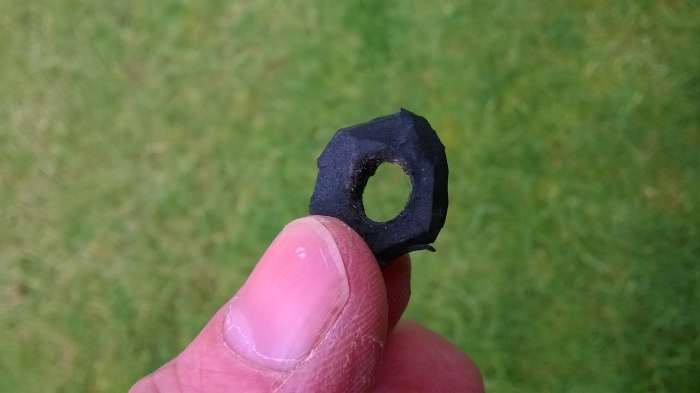

Worn washer
© Eugene Brennan

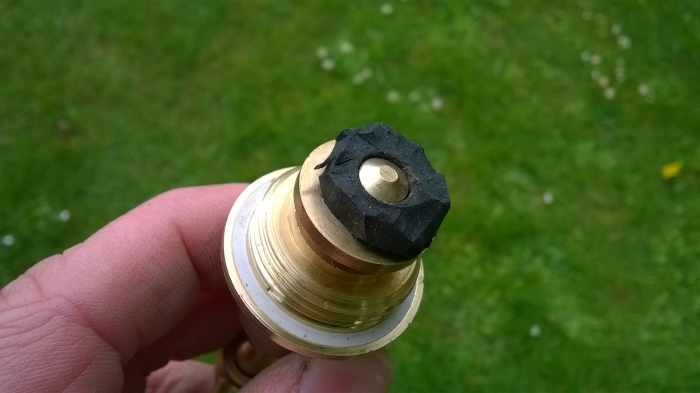

Worn washer
© Eugene Brennan
This flanged slice is called a "jumper" and has a mushroom shaped lug (or nut) at the center to retain the washer
© Eugene Brennan
Stride iv. Fit the New Washer
You will demand a 3/4 inch or 20mm diameter washer for a 1/two inch spigot.
Utilise your thumbs and nails to push the washer into place.
Push the the new washer on with your thumbs
© Eugene Brennan

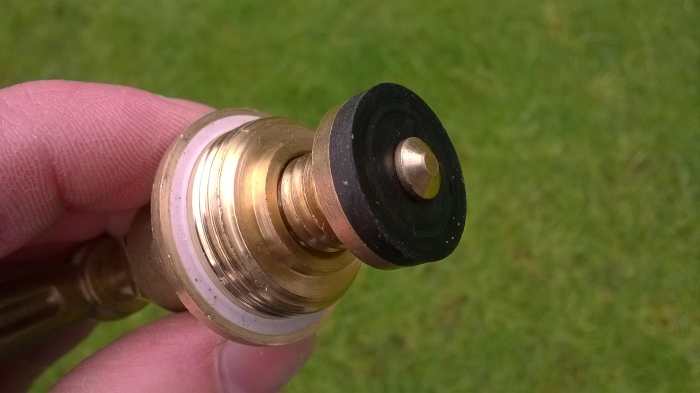

New washer in place
© Eugene Brennan
Step 5. Smear a Little Vaseline on the Threads and Replace the Caput
A picayune Vaseline makes it easier to remove the head the next time.

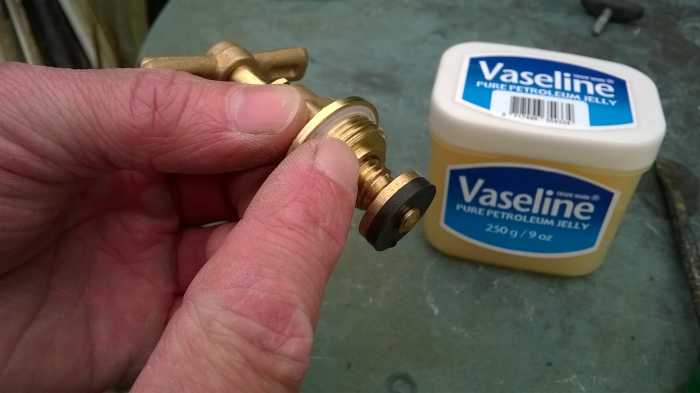

Smear a little Vaseline on the threads
© Eugene Brennan
Water Leaking From the Spindle of a Spigot
Sometimes a spigot may leak from the point where the shaft or spindle enters the head. If this is the case, you need to replace the packing nut washer. This is held in identify by the packing nut, screwed into the head. Use the same steps above to undo this nut and you lot should exist able to buy a replacement in a plumbers suppliers or good homestore. A solution which may also work is to wrap the spindle with PTFE plumbing record and button this downwards into the hollow inside the head nut. Then replace the packing nut.
If the Tap Yet Leaks......
The valve seat may be worn. This is the role inside the spigot which the washer pushes against to cut off catamenia. This can be reground flat with a valve reseating tool. Now while this pick could be considered for faucets on wash basins, baths and sinks which are more than difficult and bad-mannered to replace, its not worth buying a tool to regrind an outdoor spigot. These are relatively inexpensive compared to their chrome plated counterparts indoors and easy to supervene upon.
Amazon'south Selection for Replacement Bib With Sharkbite Plumbing fixtures
If y'all need to replace your garden bibcock, this is Amazon'southward Choice for an outside faucet with Sharkbite fittings. The 3/4" GHT - 1/2" NPT bibcock can be chop-chop continued by anyone without plumbing skills because it has a Sharkbite push button fitting connector for for utilise with copper, PEX, CPVC, PE-RT or HDPE plumbing. So no wrenches are required. Merely cut the pipe foursquare and push button into the Bib. You will likewise need a double check valve continued inline in the feed pipe to the spigot to prevent dirty water from e.thou. a continued hose back flowing into your home supply. This is usually located indoors in the feed piping.
Hose bib or garden faucet.
Amazon
Fixing a Leaking Hose Connection
If your hose has a connexion like the one below, the O-ring in the coupler can article of clothing over time.
Remove the quondam O-ring with a screwdriver. Try to get a new one with the same thickness, although a thicker or smaller diameter ane may even so work. Push the new ring into identify with your thumbs and make certain its fully seated in the groove.
A leaking hose connector is caused by a worn O-ring
© Eugene Brennan

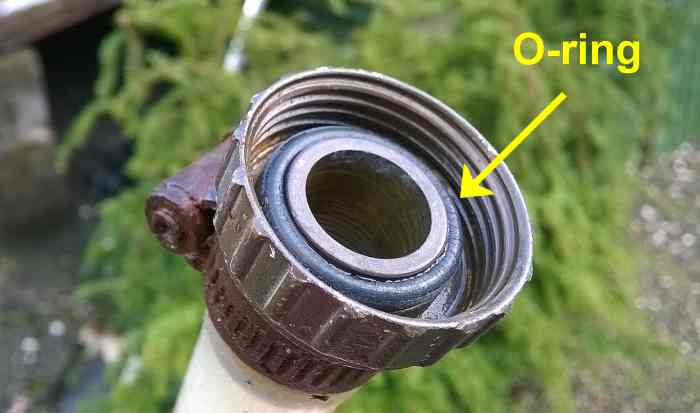

O-rings become worn and cracked over time, causing leaks
© Eugene Brennan

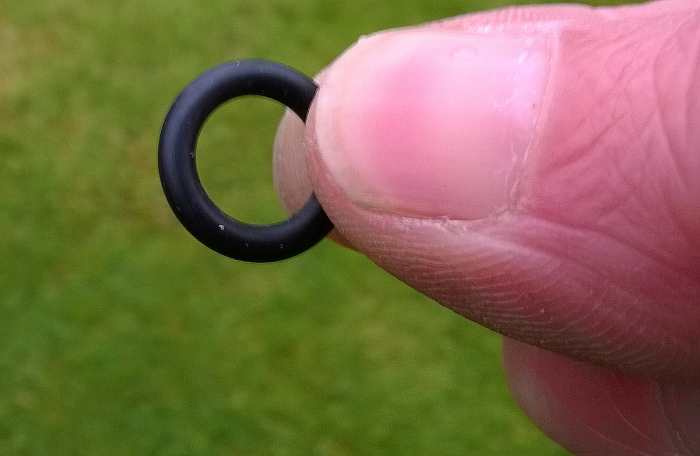

O-ring
© Eugene Brennan

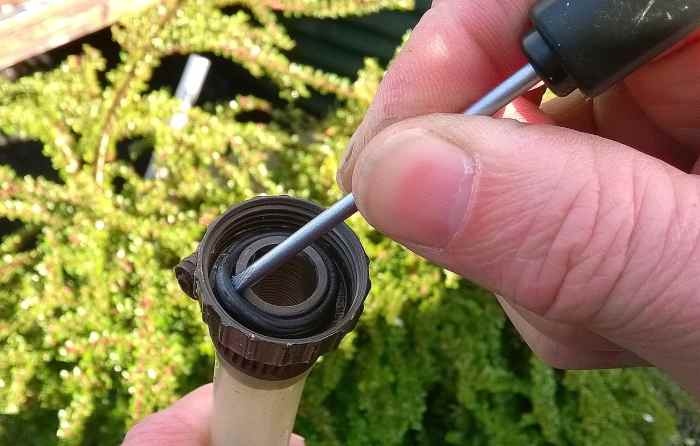

Remove the onetime O-ring with a screwdriver
© Eugene Brennan
Care of Hoses During Winter
In winter after you turn off the faucet/spigot/tap, turn the spray nozzle back on and allow h2o to bleed from the hose. You won't become all the water out, but it may leave enough air spaces in the hose for expansion of water to occur and assistance prevent bursting in severely cold weather. If the spray nozzle is hanging down and turned off, water can collect in information technology and freeze, great the fitting. This has happened to me on a couple of occasions. So go out it on for water to bleed out. See photo beneath.

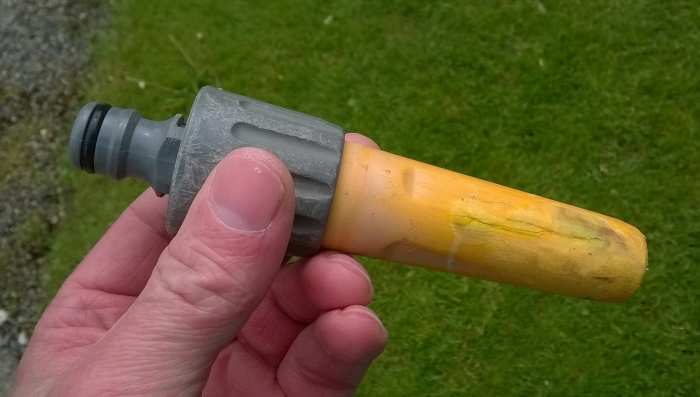

This spray nozzle cracked because information technology was left turned off in freezing weather
© Eugene Brennan
Easy TapSplitter
If you don't desire to mess well-nigh with spanners, a novel production available on Amazon United kingdom from ABD Tools makes it easy to remove even the near stubborn tab head safely. The "Easy Tapsplitter" tool comes every bit a kit, and suits all size tap caput basics. Encounter link below:
Easy Tapsplitter
Epitome courtesy ABD Tools UK
This article is accurate and true to the best of the author'south knowledge. Content is for informational or entertainment purposes simply and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.
Questions & Answers
Question: What size washer do I need for a garden tap?
Answer: Usually a 3/4" / 20mm washer. However, once yous remove the top of the tap, you can easily measure the diameter.
Question: How do I become the assembly out of my Spigot washer? I removed the handle and unscrewed it, but the associates will non come out from outside the spigot.
Answer: If the part that holds the water has separated and stuck inside the spigot, grab information technology with long nose pliers and you may be able to pull it out.
